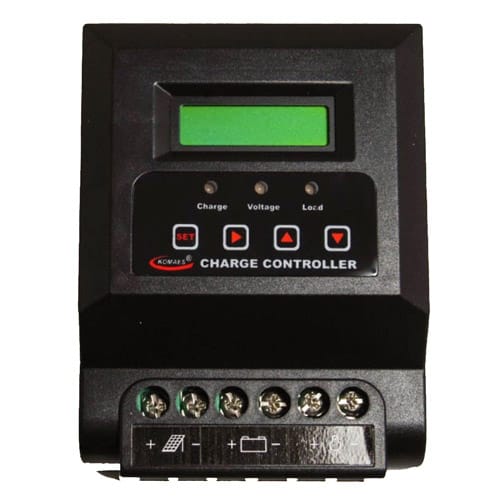

20A Solar Charge Controller
$56.80
Available Options for the 20A Solar Charge Controller:
KC9
- System Voltage 12V
- Max PV Charging Current 20A
- Rated Charging Voltage 17V / 34V
- Light Switch mode
In stock (can be backordered)
Description
~ Download PDF for additional information
Download PDF FileSpecifications of the 20A Solar Charge Controller:
Model No. KC9
Nominal System Voltage 12V
PV Input
PV Charging Current 20A
Rated Charging Voltage 17V / 34V
Lead-acid Battery of the Solar Charger
Nominal Voltage 12V / 24V
Regulation Voltage 4V/ 28.8V adjustable
Float Voltage 1V/ 28.2V adjustable
Low Voltage Alarm Low Voltage Disconnect + 0.5V
Low Voltage Disconnect 8V/ 21.6V adjustable
Load Output of the 20A Solar Charge Controller
Nominal Voltage 12V / 24V
Rated Load Current 20A
Over Voltage Alarm 5V / 31V
High Voltage Disconnect 16V/ 32V
