Description

Download PDF for additional information

Download PDF File

Specifications:

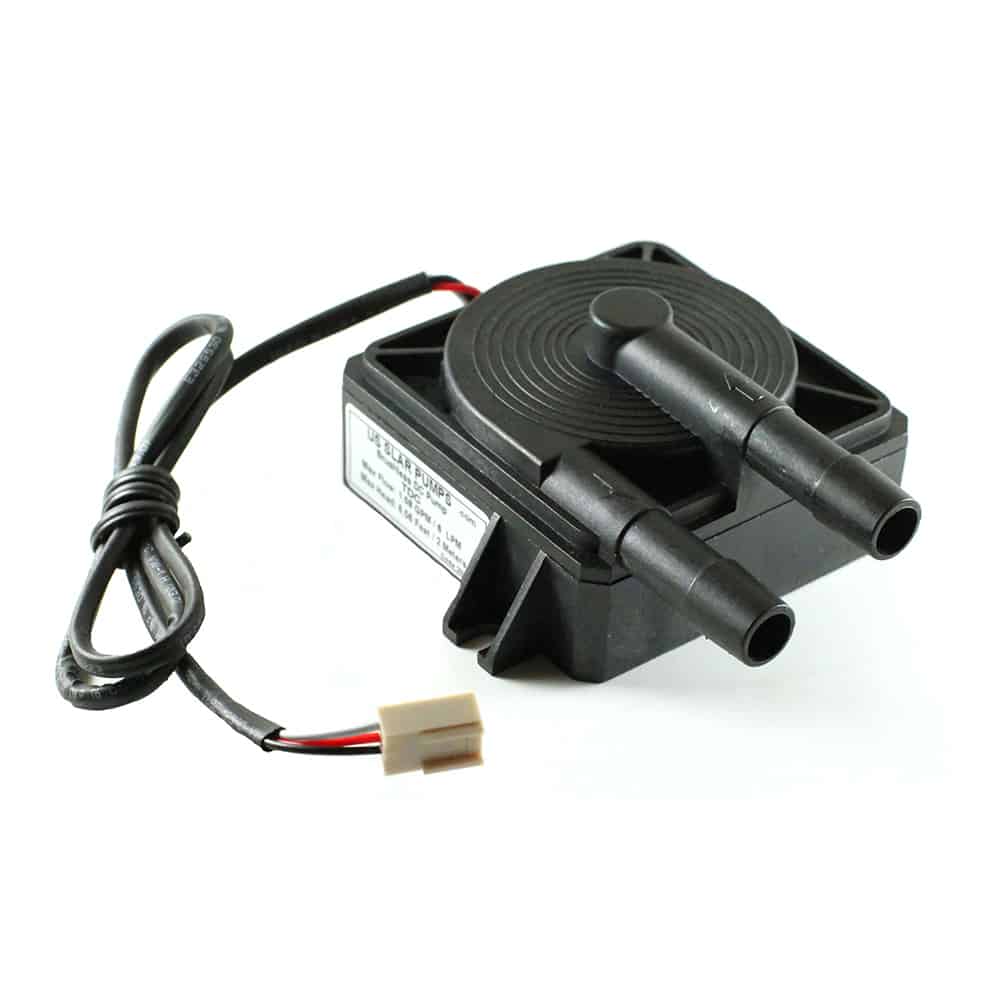

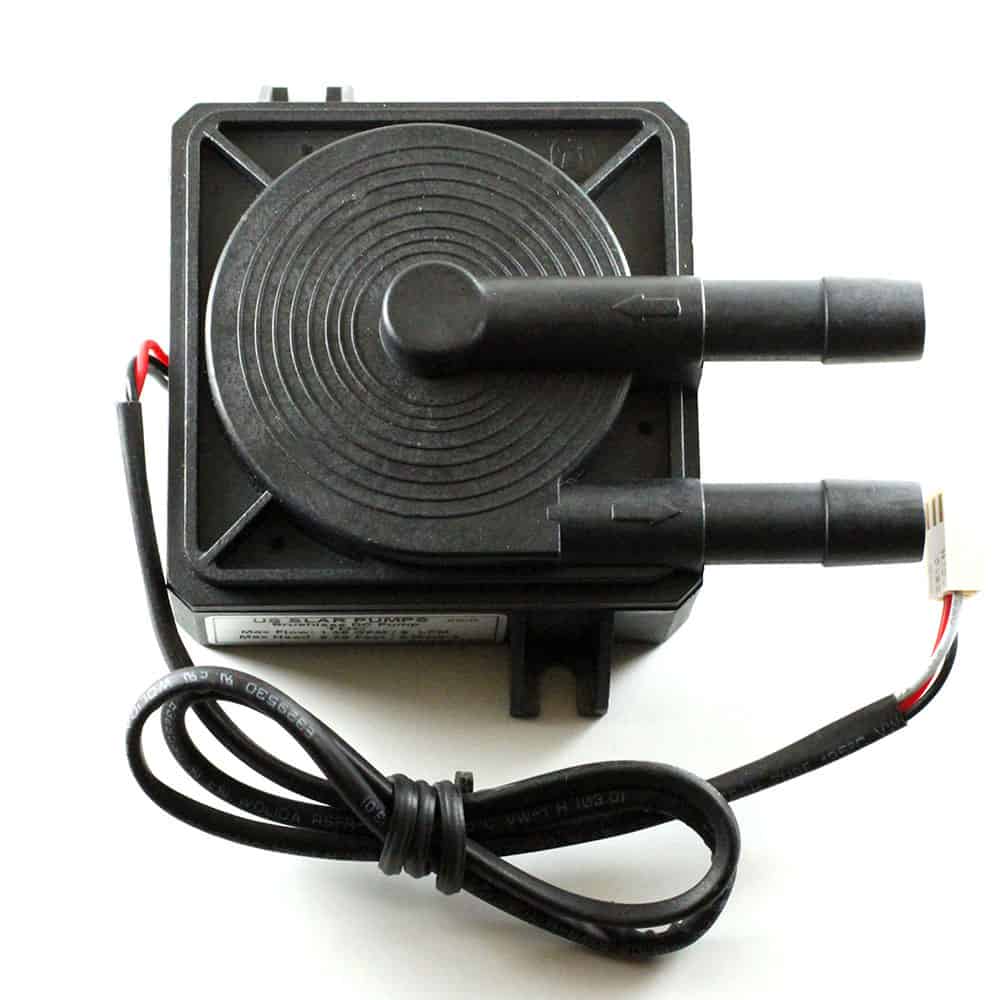

These are the specifications of the TDC-A Pump:

• 12 Volt – 6 Watt – 0.5 Amps
• Max Flow Rate – 1.58 GPM / 6 LPM
• Max Head – 0.8 F / 2.7 M
• Maximum Temperature – 185 F / 85C
• Static PSI – 58.0 / Bar 4.0
• Fittings – Barbed
• Inlet / Outlet – 3/8” / 10mm
• Not submersible
• Is wired for a computer’s circuit board

Application:

This highly efficient little pump is as quiet and the normal CPU fan. Our brushless motor technology leaves you with a maintenance free, long-life, super quiet, dependable pump.

Features of the TDC-A Pump:

• Whisper quiet motor
• RPM Signal: single wire on 3 pin connector RoHS Compliant
• DC brushless motor with energy efficiency technology by micro processor
• Durable permanent magnetic rotor/impeller and fine ceramic shaft
• Advanced magnetic drive technology for static-impeller
• 50,000-hour life time
• Can sustain continual 24-hour work load

Areas of Use of the TDC-A Pump:

• Electronics Cooling
• Laser Cooling
• Medical Water Circulation
• Chiller Systems Liquid Transfer
• General Purpose Pump

If you would like more information or have any questions, please feel free to contact us.
