What is PWM

Pulse Width Modulation (PWM) is a digital technique to control analog power by rapidly switching a signal on and off, varying the “on-time” (duty cycle) to simulate different voltage levels.

This effectively controls the average power delivered to a device, widely used for dimming LEDs, controlling motor speed, and operating servo motors.

The faster the switching (high frequency) and longer the “on” pulse, the more power reaches the device, allowing for smooth, efficient control of things like fan speed or light brightness without complex analog circuits.

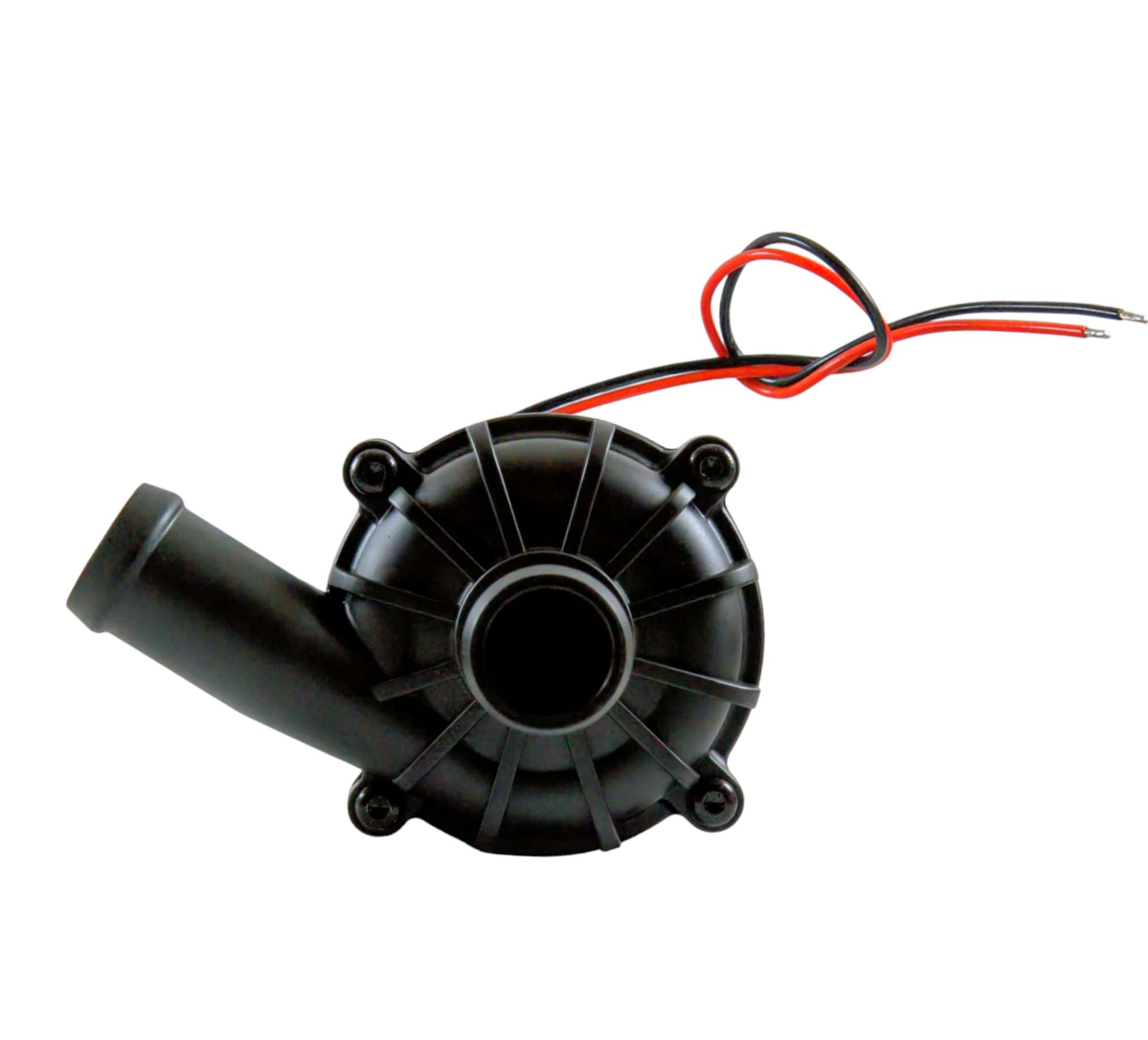

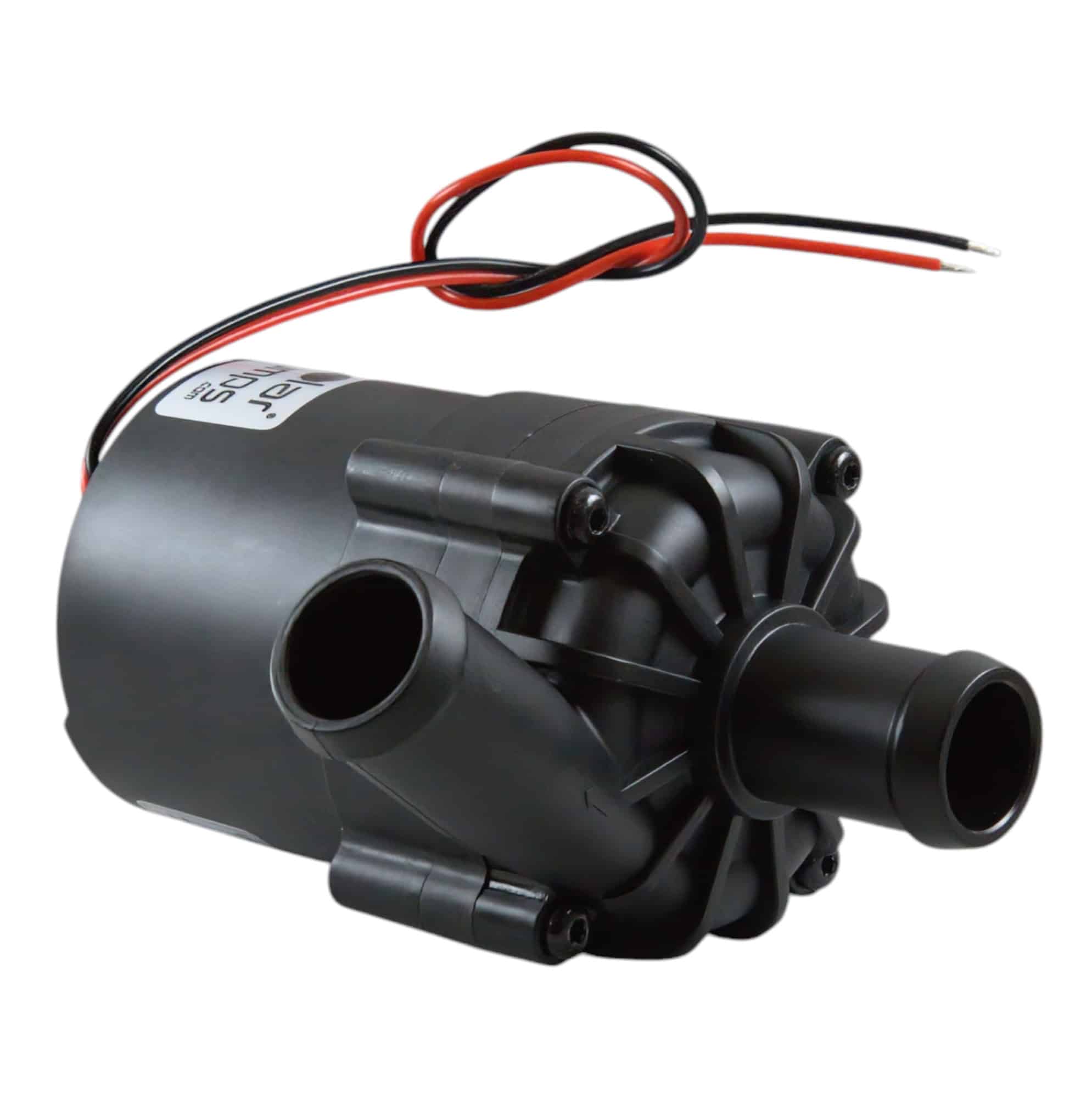

Specifications of the C2 Automotive/Marine Pump with PWM:

• Static psi: 58.0 / 4 Bar
• Threaded Fittings
• Inlet/Outlet: 1/2″x 1/2″
• Maximum Head: 29.52 ft / 9 m
• Max Temperature: 170 F / 75 C

Application of the C2 Automotive/Marine Pump with PWM:

This is one of our C series micro centrifugal pumps.  This circulating pump is powered by a three-phase brushless DC motor. Our C series pumps are quiet. They are compact and lightweight.  The C2 has a variety of features. It has a seal-less design to prevent leakage. The pump also accepts a wide range of working voltage.  This provides stable performance for the pump.

The C2 Automotive / Marine Pump is designed for general, commercial and industrial applications. This pump is ideal for all circulation pump purposes. It pumps fresh water and seawater. The C2 can also pump other liquids that are compatible with the pumps materials. The liquids need to be of similar viscosity to water.

Features of the C2 Automotive/Marine Pump with PWM:

• Highly efficient ECM three-phase brushless DC motor
• Sustains a continuous 24-hour workload
• Life expectancy of well over 20000 hours
• Advanced magnetic drive technology
• Sealed rotor-impeller and shaft
• Leak prevention
• One moving part: the magnetically driven rotor-impeller
• Highly precise single ceramic bearing
• Wear resistant
• Unique closed impeller
• Dynamically balanced
• Strong pressure performance, steady flow
• Smooth, ultra-quiet operation
• Protection from stuck impellers
• Over-voltage and overload protection
• Over-current protection

Areas of Use of the C2 Automotive / Marine Pump:

• Heating water mattresses
• Automotive air conditioning
• Hot water circulating system
• Electric cars: radiators, heaters
• Computer CPU cooling circulation
• Liquid transfer general purpose pumping
• Fountain, aquariums and larger fish ponds
• Circulating systems for homes, RV’s and boats
• Electronics cooling water circulation chiller systems
• Cleaning equipment, purification and water treatment
