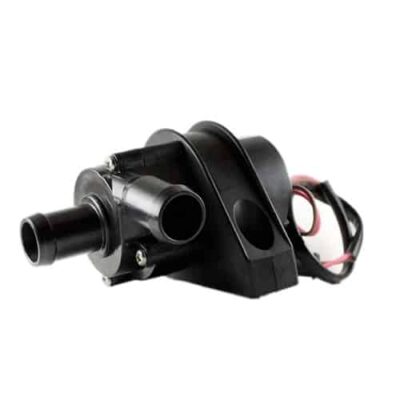

A5 Auxiliary Pump


Available Options:

A5 12V 23L
  • 12 Volt – 13.5 Watt – 1.1 Amps
  • Max Flow Rate – 6.07 GPM / 23 LPM
  • Max Head – 8.20 F / 2.5 M
A5 24V 23L
  • 24 Volt – 17 Watt – 0.7 Amps
  • Max Flow Rate 6.07 GPM / 23 LPM
  • Max Head 9.8 F / 3 M
SKU: A5 Category:

Quantity based pricing table


Download PDF of the A5 Automotive Pump

Download PDF File

View and download STP file here

Download STP File

Specifications of the A5 Automotive Pump:

  • Max Temperature – 248 F / 120C
  • Static PSI – 145.0 / 10 Bar
  • Hose Fittings
  • Inlet / Outlet – 20mm x 20mm


The A5 Automotive Pump can be used for most vehicle engine circulation applications. It is characterized by its unique design. Furthermore, the A5 is known for its specialty, high efficiency, low power consumption, and stable performance.

The long life brushless motor technology provides a maintenance free and quiet service life. This pump is an excellent choice for car engine circulation. It is also perfect for pre-heating, parking-heating or any circulation pump application where normal circulation is not available.


  • Highly efficient ECM brushless DC motor
  • Can sustain a continuous 24-hour workload
  • Life expectancy of over 20000 hours
  • Durable permanent magnetic rotor/impeller & fine ceramic shaft
  • Advanced magnetic drive technology for static-impeller
  • The motor with big machine movement optimization design, has very low temp rise
  • Automatic polarity protection, overload protection, block protection
  • Special design to meet car vibration working condition, car power supply with its high peaks and unstable voltage
  • IP protection level: IP 67

Areas of Use for the A5 Automotive Pump:

  • Packing heater
  • Modified motorcycles
  • Engine cooling system
  • Car ready-heating circulation
  • Car engine cooling circulation
  • Normal hot water circulation
  • Automotive antifreeze circulation
  • Electric vehicles water circulation
