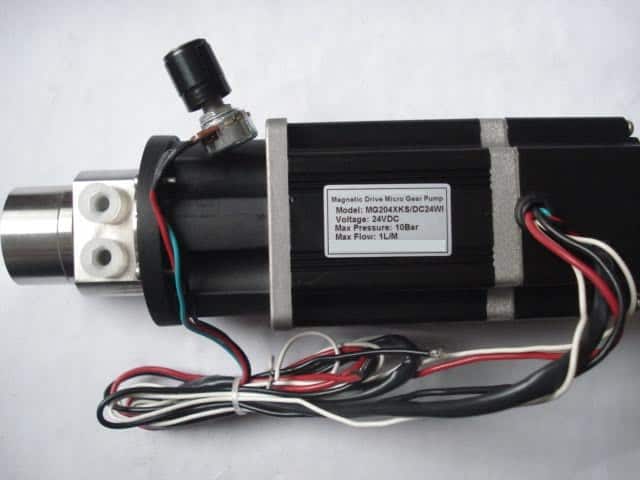

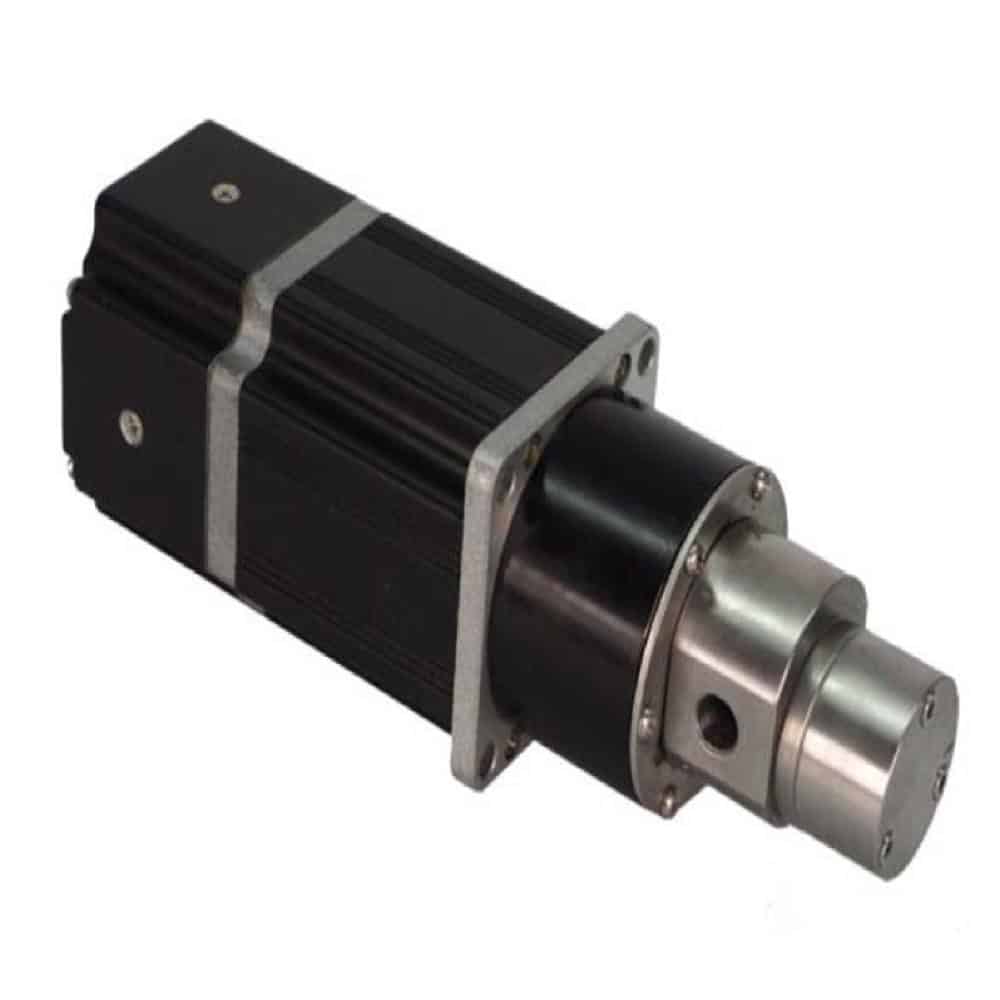

200 Series Magnetic Drive Brushed Motor

$296.65$447.68

*This is a special order item please allow 3-4 weeks for shipping

Available Options:

Max Flow scope (ml/Min)

  • 1000
  • 2500
  • 3500

Gear Material

  • Alloy gear
  • Standard PEEK gear

Valve options

  • Limited Pressure (L)
  • Non-Return (R)
  • None
Clear

Description

~ Download PDF for additional information

Specifications:

These are the specifications of the 200 Series Magnetic Drive Brushed Motor:

  • Power: 70 W
  • Voltage: 24 DC
  • Inlet/Outlet Diameter: G1/8″
  • ml/rpm: 0.27, 0.55, 0.75 (reference: 3000RPM)
  • Max Head Pressure: 7, 10 Bar
  • Max Flow scope: 1000, 2500, 3500 ml/Min
  • Valve options: Limited pressure, Non-return valve
  • Gear Material options: PEEK gear, Alloy gear, Non-corrosive gear

Application of the 200 Series Magnetic Drive Brushed Motor:

Magnetic gear pumps, using magnetic coupling drive, 316 stainless steel shell, PEEK material gear, PTFE materials for the static sealing and bearing, can with the built-in limit pressure valve.

Pump can be used in the -0.1 Mpa~2Mpa closed systems. The rated output pressure is 0.5 Mpa (medium: water). The highest output 1.4 Mpa pressure and flow rate 50~3500 ml / min.

Widely used in medical machinery, fine chemicals, water treatment printing, cleaning, packaging, food processing, and other areas of liquid delivery.

Features of the Magnetic Drive Motor:

  • Altitude: ≤ 2500 M
  • Humidity environment: ≤ 85%
  • Fluid viscosity: 0 ~ 3000 CPS
  • Ambient temperature: -10 ~ 50 °C
  • Fluid temperature: -10 °C ≤ T ≤ 100 °C (except for freezing)
  • Apply the media of: acid and alkali, salt, organic solvents, oils.
  • Lifetime: 1500~2000 hours
  • Can be run continuously

Areas of Use:

  • Printing
  • Cleaning
  • Packaging
  • Fine chemicals
  • Food processing
  • Water treatment
  • Food processing
  • Medical machinery
