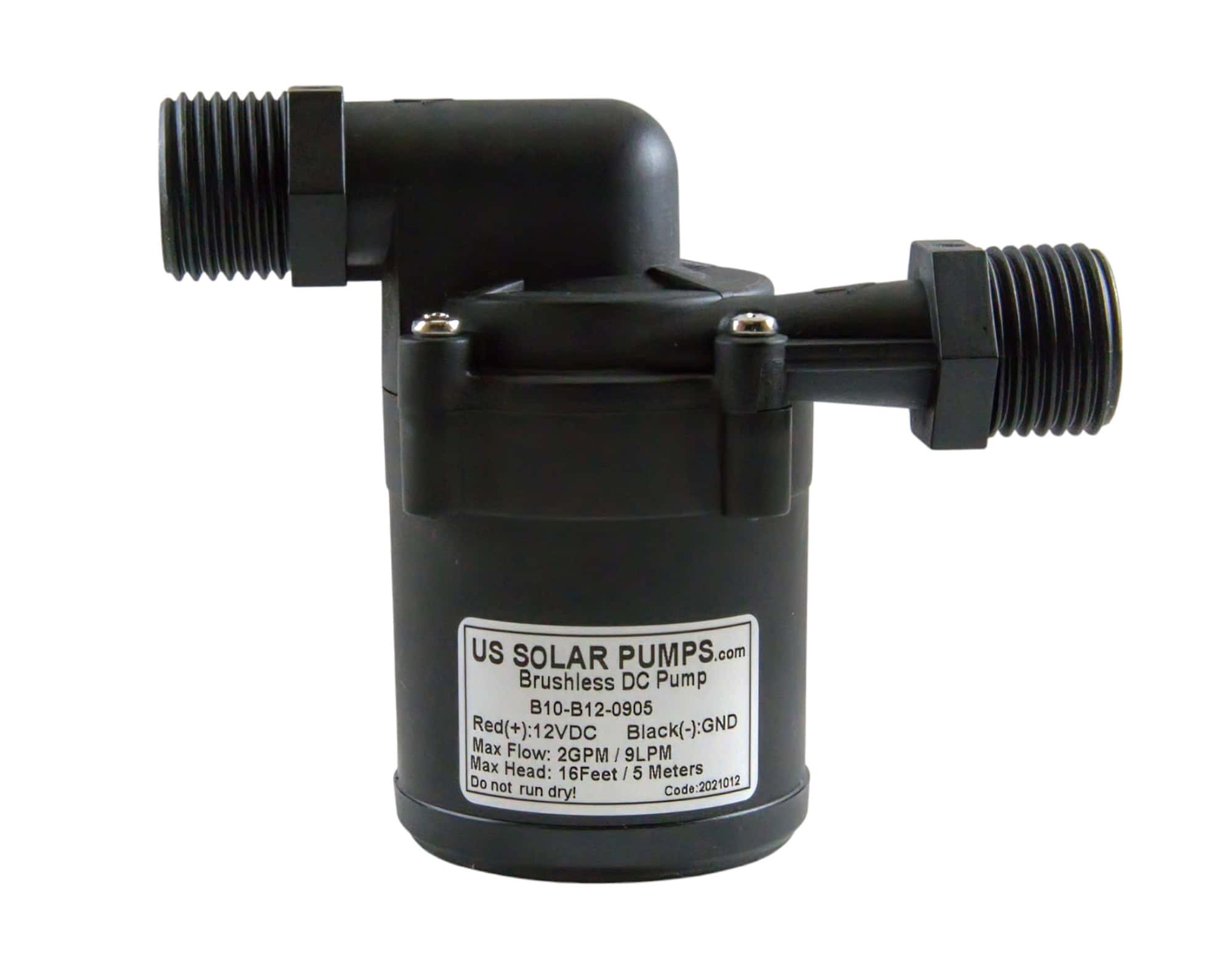

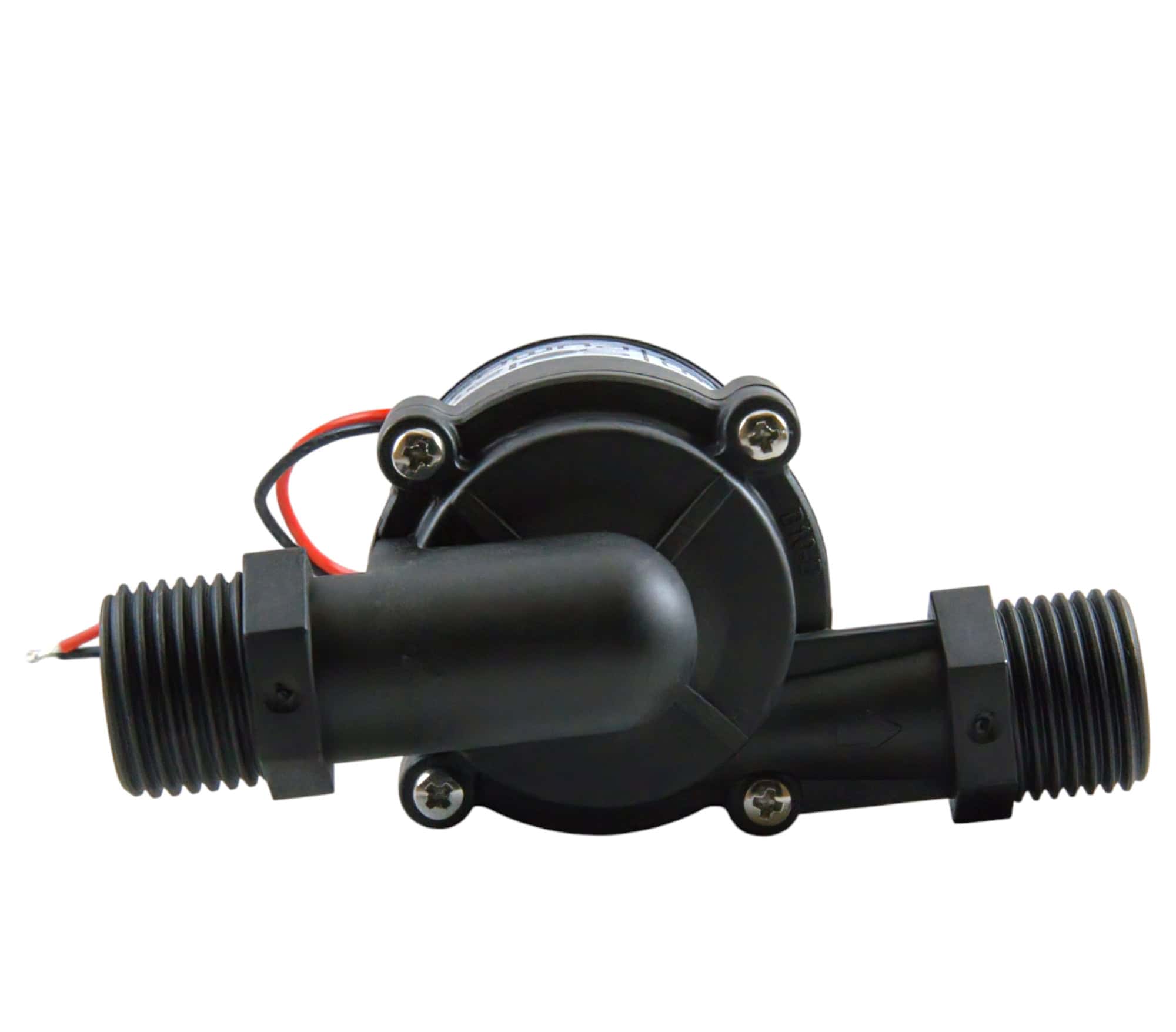

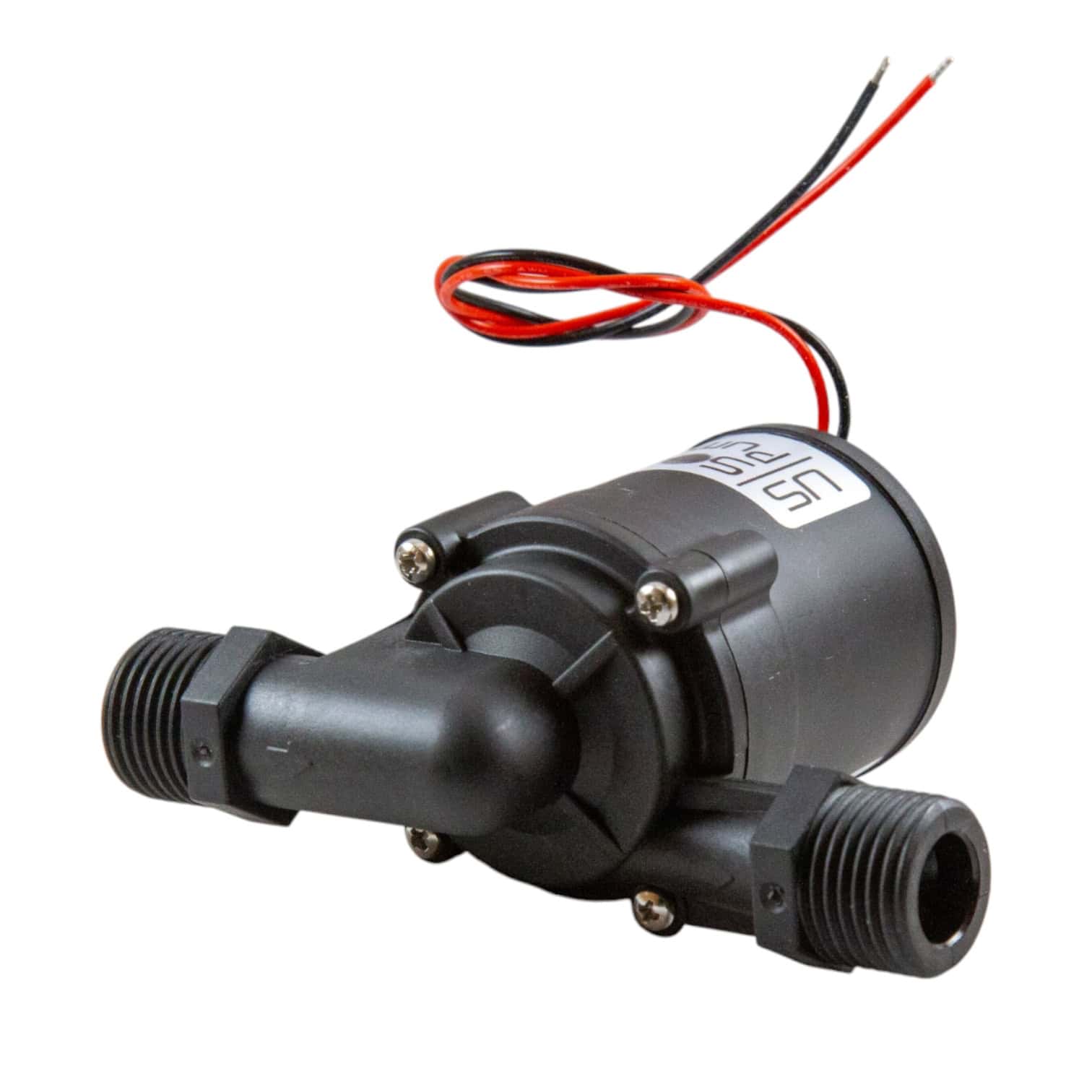

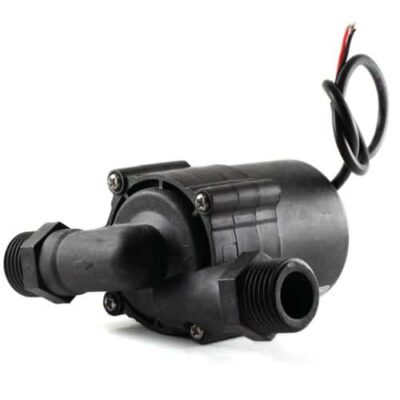

B10B Circulating Pump


Available Options:

B10B 12V 7L
  • 12 Volts – 16.56 Watts –1.38 Amps
  • Max Flow Rate – 1.84 GPM / 7 LPM
B10B 12V 7L H
  • 12 Volts – 16.56 Watts –1.38 Amps
  • Max Flow Rate – 1.84 GPM / 7 LPM
  • High Temperature Resistance

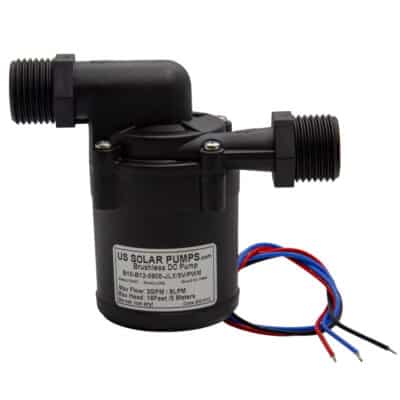

B10B 12V 9L
  • 12 Volts – 16.6 Watts –1.4 Amps
  • Max Flow Rate – 2.37 GPM / 9 LPM
SKU: B10B 9L Category:

Quantity based pricing table


Download PDF for additional information about the B10B Circulating Pump

Download PDF File

Download PDF for additional information about the B10 Series Pumps

Download PDF File

View and download STP file here

Download STP File

View and download STP file of the mounting bracket for the B10B

Download STP File

B10B Circulating Pump Specifications:

  • “H” Max Temperature – 122 F / 50C
  • Static PSI – 58 /45 Bar
  • Threaded Fittings
  • Inlet / Outlet – 1/2” x 1/2”
  • Runs directly from PV
  • Submersible
  • Food Grade


The B10B Circulating Pump is one of our B series micro centrifugal pumps.  It is powered by a brushless DC motor.  Moreover, our B series pumps have a quiet, compact and lightweight design.

The pumps have a seal-less design to prevent leakage. Additionally, the B10B has a wide range of working voltage providing stable performance. The circulating pumps are made with food grade materials. They are also made to have a high-temperature resistance.

The B10B Circulating Pump is designed for general, commercial and industrial applications. In addition, these pumps are ideal for all circulation pump applications. They will pump both freshwater and seawater as well as other liquids with a similar viscosity to water.

Features of the Pump:

  • Highly efficient ECM brushless DC motor
  • Sustains a continuous 24-hour workload
  • Life expectancy over 20,000 hours
  • Advanced magnetic drive technology with a leak-proof static-seal
  • High density ceramic bearing and shaft designed for high temperature endurance
  • Dynamically balanced impeller for smooth ultra-quiet operation
  • The unique design of this pump makes it reliable because it contains only one moving part.  The magnetically driven rotor/impeller spins on a single ceramic bearing. Of course this extends the life of this pump beyond existing standards
  • The B10-B has threaded connectors and is in-line

Common Questions About The B10B:

Question: What kind of connectors does it have?

Answer: The B10B has threaded connectors.

Question: Is it in-line or barbed?

Answer: It is in-line. If you are looking for a barbed version, we also have that variation. It is the B10A which is barbed and at a 45° angle.

Areas of Use For The B10B Circulating Pump:

  • Electronics cooling
  • Automotive air conditioning
  • Hot water circulating system
  • Electric cars: radiators, heaters
  • Water circulation chiller systems
  • Circulating systems for homes, RV’s and boats

If you liked the B10B Circulating pump, you may like the Sister Product: B10A Circulating Pump.
