B10A Circulating Pump - replacement water pump for chili cube - cube sleep system - replacement pump
B10-A Circulating Pump

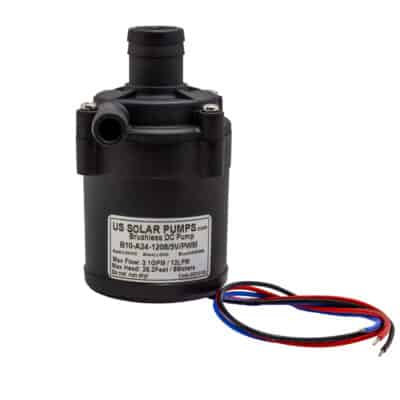

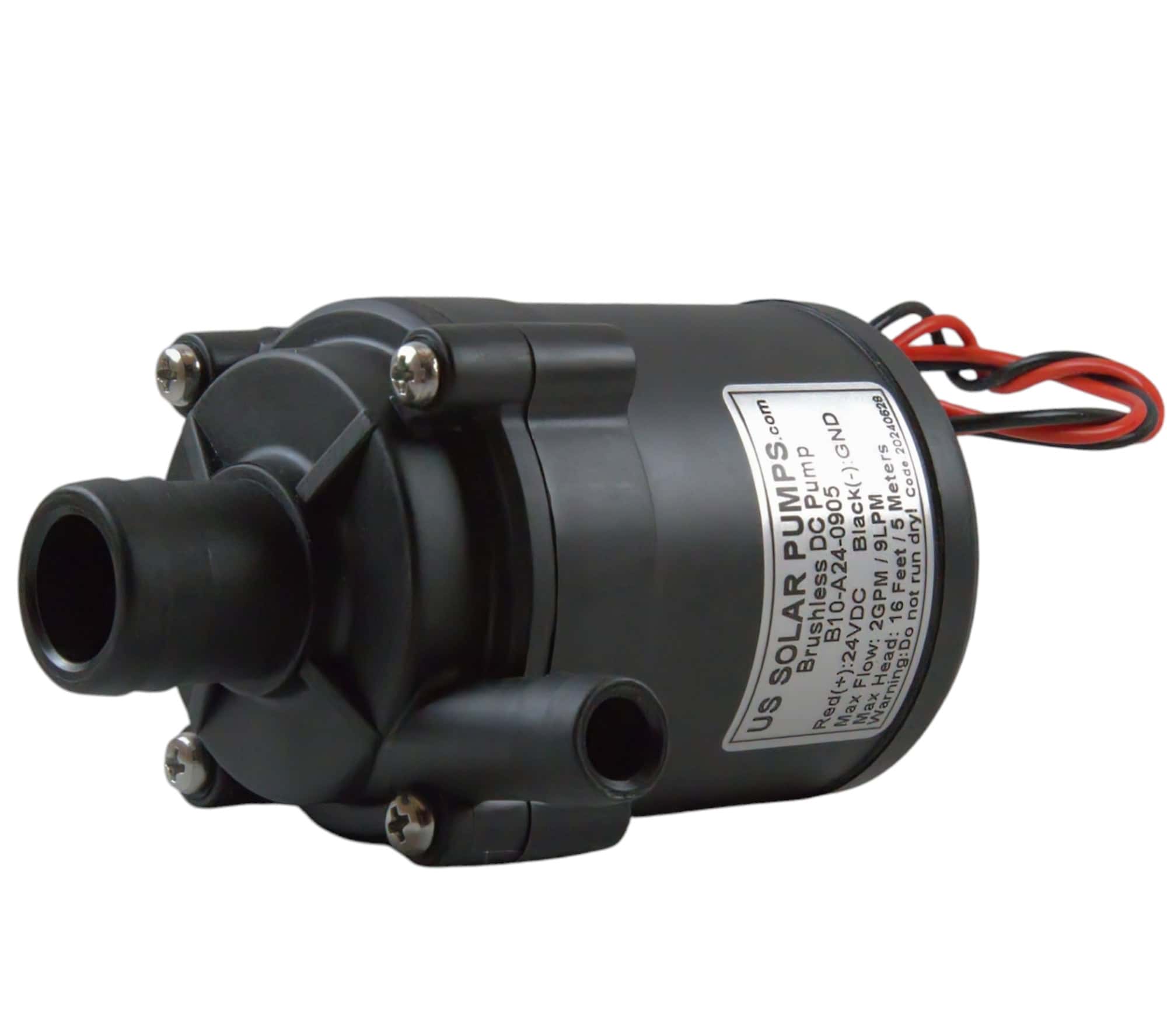

B10A Circulating Pump

$48.65

Available Options:

B10A 12V 9L
  • 12 Volt – 16.8 Watt – 1.4  Amps
  • 20 Watts PV min.
  • Max Flow Rate – 2.38 GPM / 9 LPM
B10A 24V 12L
  • 24 Volt – 10 Watt – 0.35 Amps
  • 15 Watts PV min.
B10A 24V 9L
  • 24 Volt – 15 Watt – 0.55 Amps
  • 15 Watts PV min.
  • Max Flow Rate – 2.64 GPM / 9 LPM
B10TA 12V 4L
  • 12 Volt – 16.8 Watt – 1.4  Amps
  • Max Flow Rate – 1.05 GPM / 4 LPM



SKU: B10A Category:

Quantity based pricing table

Description

Download PDF for additional information about the B10A Circulating Pump

Download PDF File

Download PDF for additional information about the B10 Series Pumps

Download PDF File

View and download STP file of the mounting bracket here

Download STP File

B10A Circulating Pump Specifications:

  • Max Temperature – 158 F / 70C
  • Static PSI – 58.0 / 4 Bar
  • “H” Max Temperature – 212 F / 100C
  • Inlet / Outlet – 12.4mm x 10.8mm
  • Food Grade
  • Submersible
  • Can be run directly from PV

Application:

The B10A Circulating Pump is one of our B series micro centrifugal pumps.  It is powered by a three-phase brushless DC motor. Our B series pumps are designed to be quiet. Also, they are made to be compact and lightweight.

The B10A has a variety of features.  For instance, it has a seal-less design to prevent leakage. It also has a wide range of working voltage. This provides the pump with a stable performance. The B10 is designed for general and commercial use. Also, they can be used for industrial applications.

These pumps are ideal for all circulation pump implementations. The B10A pumps freshwater and seawater. Moreover, it can pump other liquids that are compatible with the pump’s materials.

Features:

  • ECM brushless DC motor
  • It can sustain a continuous 24-hour workload
  • Life expectancy of well over 20,000 hours
  • Advanced magnetic drive technology
  • Leak-proof static-seal
  • Ceramic bearing and shaft
  • Designed for high temperature endurance
  • Highly efficient
  • Dynamically balanced impeller
  • Quiet operation
  • Reliable because of the unique design. The pump contains one moving part.  The magnetically driven impeller spins on a single ceramic bearing.  Furthermore, this extends the life of the pump beyond existing standards.

Common Questions About The B10aA:

Question: Is it in-line or barbed?

Answer: It is barbed. If you are looking for a in-line version, we also have that variation: the B10B Circulating Pump.

Areas of Use for the B10A Circulating Pump:

  • Chiller systems
  • Water fountain
  • Large fish ponds
  • Vending machines
  • Beverage processing
  • Hot water circulating system
  • Electric cars: radiators, heaters
  • Liquid filling and transfer in food
  • Electronics cooling water circulation
  • Fountain, aquariums and small fish ponds
  • Instant electric water heater, electric shower
  • Circulating systems for homes, RV’s and boats
  • Cleaning equipment
  • Purification
  • Water treatment
