C1C Circulating Pump

$81.85

Available Options

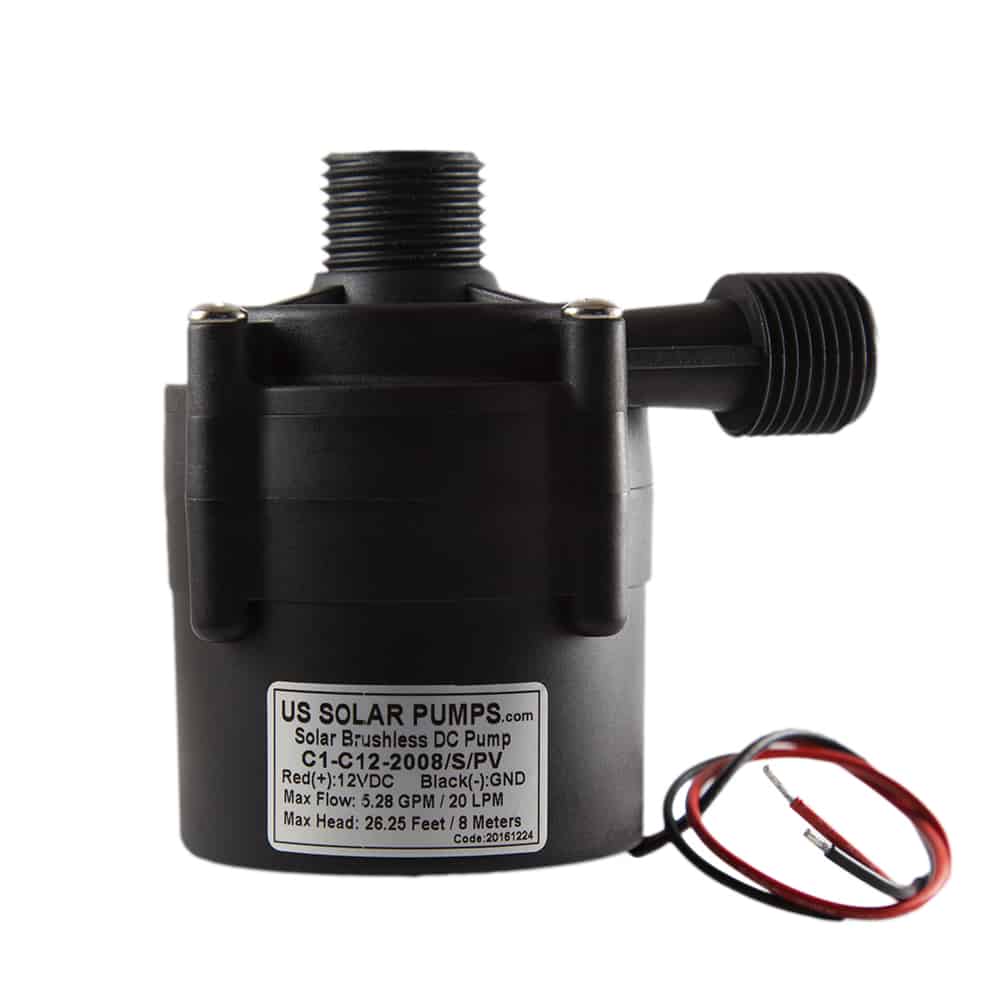

C1C 12V 20L
  • 12 Volts – 34 Watts – 2.8 Amps
  • Max Flow Rate – 5.3 GPM / 20 LPM

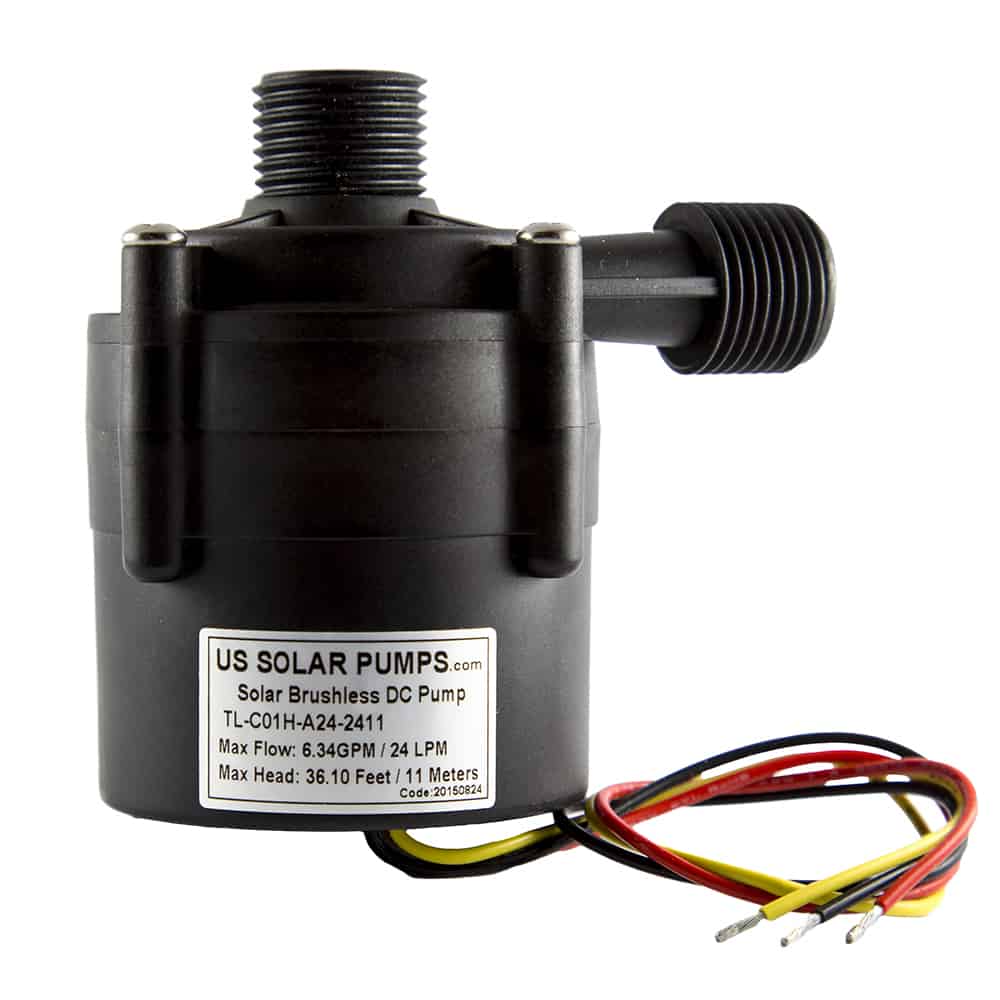

C1C 24V 24L
  • 24 Volts – 48 Watts – 2 Amps
  • Max Flow Rate – 6.34 GPM / 24 LPM



SKU: C1C Category:

Quantity based pricing table

Description

Additional information for the C1C Circulating Pump

Download PDF File

STP File

Download STP File

C1-C Circulating-Pump

Specifications of the C1C Circulating Pump:

  • “H” Max Temperature – 170 F / 77 C
  • FG Cannot be run directly from PV
  • PV Can be run directly from PV
  • S Can be run submersed
  • Static PSI – 58.0 / 4 Bar
  • Threaded Fittings
  • Inlet / Outlet – 1/2″x 1/2″

C1C Circulating Pump Applications:

This is one of our C series micro centrifugal pumps.  This circulating pump is powered by a three-phase brushless DC motor. Our C series pumps are quiet. They are compact and lightweight.  The C1C has a variety of features. It has a seal-less design to prevent leakage. The pump also accepts a wide range of working voltage.  This provides stable performance for the pump.

The C1C is designed for general, commercial and industrial applications. This pump is ideal for all circulation pump purposes. It pumps fresh water and seawater. The C1C can also pump other liquids that are compatible with the pumps materials. The liquids need to be of similar viscosity to water.

Features of the C1C Circulating Pump:

  • Highly efficient ECM three-phase brushless DC motor
  • Sustains a continuous 24-hour workload
  • Life expectancy of well over 20000 hours
  • Advanced magnetic drive technology
  • Sealed rotor-impeller and shaft
  • Leak prevention
  • One moving part: the magnetically driven rotor-impeller on a single ceramic bearing
  • Highly precise
  • Wear resistant
  • Unique closed impeller
  • Dynamically balanced
  • Steady flow and strong pressure performance
  • Smooth, ultra-quiet operation
  • Protection from stuck impellers
  • Over-voltage, overload and over-current protection

Areas of Use of the C1C Circulating Pump:

  • Heating water mattresses
  • Automotive air conditioning
  • Hot water circulating system
  • Electric cars: radiators, heaters
  • Computer CPU cooling circulation
  • Liquid transfer general purpose pumping
  • Fountain, aquariums and larger fish ponds
  • Circulating systems for homes, RV’s and boats
  • Electronics cooling water circulation chiller systems
  • Cleaning equipment, purification and water treatment
