30D Series Vacuum Pump – Liquid Diaphragm

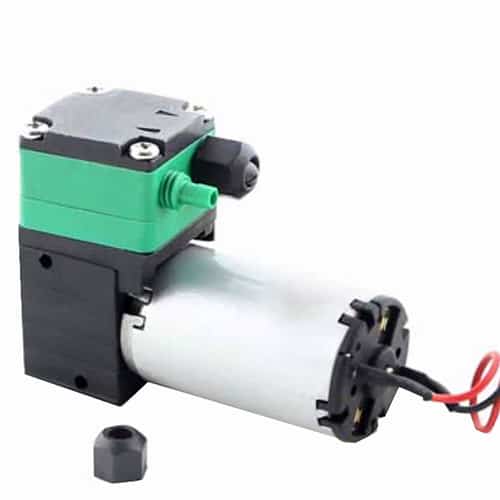

TF30D-A 12V 0.8L L
  • 12 Volt  – 0.24 Amps
  • Max Flow Rate – 0.21 GPM / 0.8 LPM
  • Maximum Vacuum – Kpa -55

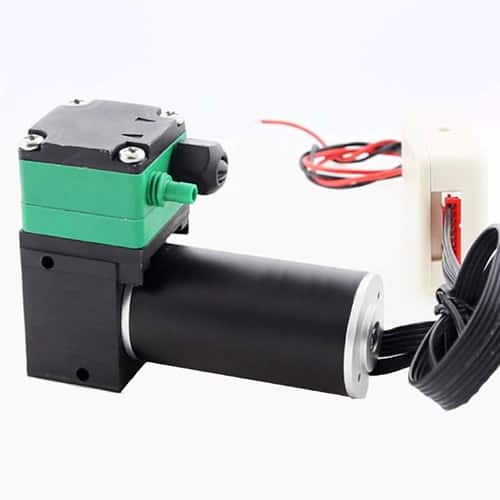

TF30D-D 12V 0.8L L
  • 12  Volt – 0.24 Amps
  • Max Flow Rate – 0.21 GPM / 0.8 LPM
  • Maximum Vacuum – Kpa -55
SKU: TF30D Category:

Quantity based pricing table


~ Download PDF for additional information about 30D Series Diaphragm Liquid Vacuum Pump

Download PDF File

Advantages of the 30D Series Vacuum Pump:

1. Less Electromagnetic Interference

The 30D Series Vacuum Pump is made with anti-electromagnetic interference capacitors. These pumps cause little interference to your facility.

2. Lower Pump Temperature

A pump that overheats can be a big problem. By using the most recent technology available, this pump won’t overheat while working. Furthermore, the outside controllers are especially good at not generating heat.

3. Manufactured With Materials That Are Compatible With Various Types of Ink

The 30D Series Vacuum Pump is manufactured with chemically resistant materials. It is made with materials such as PTFE(TFM), EPDM and other combinations. This allows almost all neutral or corrosive inks to be pumped.

Features of the Liquid Pump:

  • Strong corrosion resistance to sulfuric acid, hydrochloric acid and methanol
  • Self-priming
  • No return
  • Can run dry continuously
  • Small size
  • Operates in any installed position
  • Low vibration
  • Quiet
  • No lubrication needed
  • Maintenance free
  • Long life
  • Highly efficient
  • Closed diaphragm surface
  • Special sealing system

Features of the TF30D-A 12V 0.8L L:

  • Pump Head – Nylon
  • Membrane – EPDM/PTFE
  • Valve – EPDM/FPM
  • Motor Type – Brush

Features of the TF30D-D 12V 0.8L L:

  • Max Head – 32.8 F / >10 M
  • Pump Head – Nylon
  • Membrane – EPDM/PTFE
  • Valve – EPDM/FPM
  • Motor Type – Coreless /Brushless

Areas of Use for the Vacuum Pump:

  • Wide format graphics and industrial printers
  • Inkjet digital printing machines for textile industry
  • Labelling machine printer
  • CIJ small character printer
  • Coding system
  • Barcode printer.
