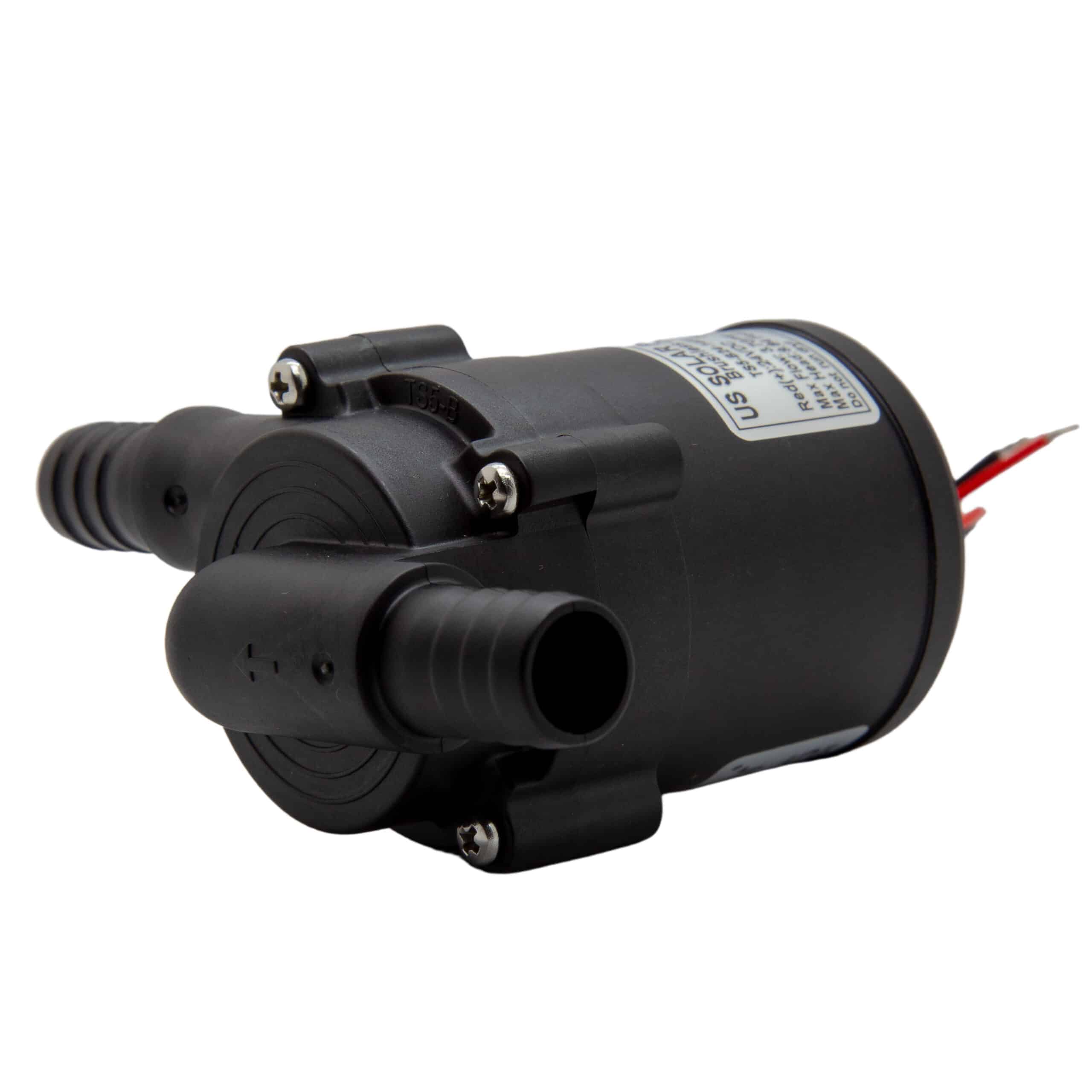

S5 Beer Brewing Pump with Barbed Fittings

$89.25

Available Options:

S5B 24V 14L
  • 24 Volts – 12.96 Watts – 1.08 Amps
  • Max Flow Rate – 3.7 GPM / 14 LPM
  • Max Head – 9.84 Feet / 3 Meters

In stock (can be backordered)

SKU: S5B-24V-24L with barbed fittings Category:

Quantity based pricing table

Min Max Unit Price
1 4 $89.25
5 9 $85.68
10 14 $83.90
15 19 $82.11
20 24 $80.33
25 29 $78.54
30 34 $76.76
35 39 $74.97
40 100 $73.19

Description

Additional information and specifications about the S5 Beer Brewing Pump with Barbed Fittings

Download PDF File

STP file

Download STP File

Specifications S5 Beer Brewing Pump with Barbed Fittings:

  • Max Temperature – 230 F / 110 C
  • Static PSI – 145.0 / 10 Bar
  • Barbed Fittings
  • Inlet / Outlet – 1/2” x 1/2”
  • Food Grade
  • Submersible
  • Can be run directly from PV

Application:

The S5 Beer Brewing Pump with Barbed Fittings is perfect for most circulation pump applications and can do so without connection to the power grid. It is highly efficient and can connect directly to a photovoltaic panel. It is small, efficient and has an extremely low power consumption.

It is designed with a brushless motor which provides a maintenance free and quiet service life. The S5 is perfect for single family home thermal solar systems. It is also an excellent choice for any circulation pump application where conventional power is not available.

Soft start-up:

The S5 Beer Brewing Pump with Barbed Fittings has a soft start-up feature which reduces high in-rush current. When the PV panel provides sufficient power, the pump goes through the alignment phase by turning the rotor into the position required for start-up.

The processor then waits until the capacitor is sufficiently charged. This enables a start-up with minimal power (less than two watt). Cycling due to unsuccessful attempts is minimized. Even after prolonged shutdown, the pump will start reliably.

PV operated:

For solar system loops, the S5 Beer Brewing Pump with Barbed Fittings can be connected directly from a PV panel. The pump slowly starts with the smallest amount of current and pushes the heated water to the storage tank. It is a simple design that eliminates the need for controllers, thermostats, and sensors.

Features of the S5 Beer Brewing Pump with Barbed Fittings:

  • DC brushless motor with energy efficiency technology by micro processor
  • Highly efficient ECM brushless DC motor
  • Can sustain a continuous 24-hour workload with life expectancy of well over 30000 hours
  • Soft start at a very low in-rush current
  • Convenient when working directly with PV panel
  • Durable permanent magnetic rotor/impeller and fine ceramic shaft
  • Advanced magnetic drive technology with static-impeller

Dry-running protection:

Drive circuitry can detect little or no liquid in the pump chamber. The dry-run protection stops the pump to prevent damage. If this occurs, the S5 needs to be restarted manually. You can do this by disconnecting and reconnecting the pump to the power supply.

Over voltage protection:

When the voltage is over 28V, the pump will shut off by itself. When the voltage falls below 28V, the pump will restart automatically.

Overload protection function:

The overload protection function means that the pump will automatically stop to prevent damage. It does so when the current is over the rated current. This can happen if the impeller is stuck due to debris. Furthermore, the S5 will automatically restart when the current falls again.

Areas of use for the S5 Beer Brewing Pump with Barbed Fittings:

  • Beer brewing
  • Liquid transfer
  • Solar water heater
  • Hot water circulation
  • Radiant floor heating
  • Air energy water heater
  • Portable power supplies
  • Hot pump air conditioner
