C11 5V PWM Automotive Pump - C11 Automotive Pump - car water pumps

C11 Automotive Pump

$90.85

Available Options:

C11 24V 15L
  • 24 Volt – 5 Watt – 0.2 Amps
  • Max Flow Rate 3.96 GPM / 15 LPM
  • Max Head 2..3 F / o.7 M

In stock

SKU: C11-24V-15L Category: Tags: , , , ,

Quantity based pricing table

Min Max Unit Price
1 4 $90.85
5 9 $87.22
10 14 $85.40
15 19 $83.58
20 24 $81.77
25 29 $79.95
30 34 $78.13
35 39 $76.31
40 100 $74.50

Description

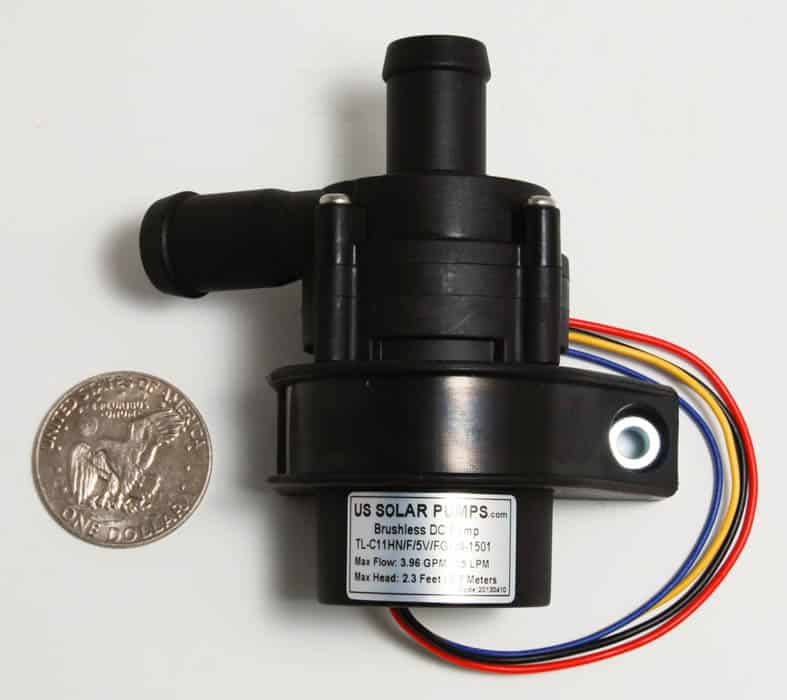

Specifications for the C11 circulating pump:

  • Max Temperature – 212 F / 100C
  • Static PSI – 58.0 / 4 Bar
  • Hose Fittings
  • Inlet / Outlet – 20mm x 20mm
  • Wired so it can utilize our PWM Speed Controller

Applications for the C11 Automotive Pump:

The TA C11 Automotive Pump is part of a series of DC pumps. They can be used for most vehicle engine circulation applications. This pump is characterized by its unique design and specialty. It is also known for its efficiency. The pump is designed for low power consumption. The C11 automotive pump also offers stable performance.

This circulating pump has a long life motor. It is maintenance free. Because of the advanced technology, the C11 pump has a quiet service life. This pump is perfect for car engine circulation. The C11 Automotive Pump is great for preheating your car. It is also useful for any circulation pump application where the normal circulation pump is not available.

Want to be able to adjust the flow?

No problem. This model (unlike the TA 50 or TA60) is wired to work with our PWM Speed Controller.

Features:

  • ECM brushless DC motor
  • Sustains a continuous 24-hour workload
  • Life expectancy: over 20000 hours
  • Permanent magnetic rotor
  • Ceramic shaft
  • Magnetic drive technology with static-impeller
  • Low heat emission
  • Automatic polarity protection
  • Overload protection
  • Block protection
  • Special design to withstand car vibrations
  • Special design to meet car power supply with its high peaks and unstable voltage
  • IP protection level: IP 67

 Where to Use the C11 Automotive Pump:

  • Packing heater
  • Modified motorcycles
  • Engine cooling system
  • Heating circulation for cars
  • Cooling circulation for car engines
  • Hot water circulation
  • Antifreeze circulation for automobiles
  • Water circulation for electric vehicles

Follow us on Facebook, Twitter, Instagram, and YouTube to see more posts about pumps.

Also, read our posts about pumps for aquariums and our Control Boxes.

Here are a couple other circulating pumps you may be interested in: the C1B Circulating Pump and the C1C Circulating Pump.
