B10B 5V PWM Circulating Pump


Available Options:

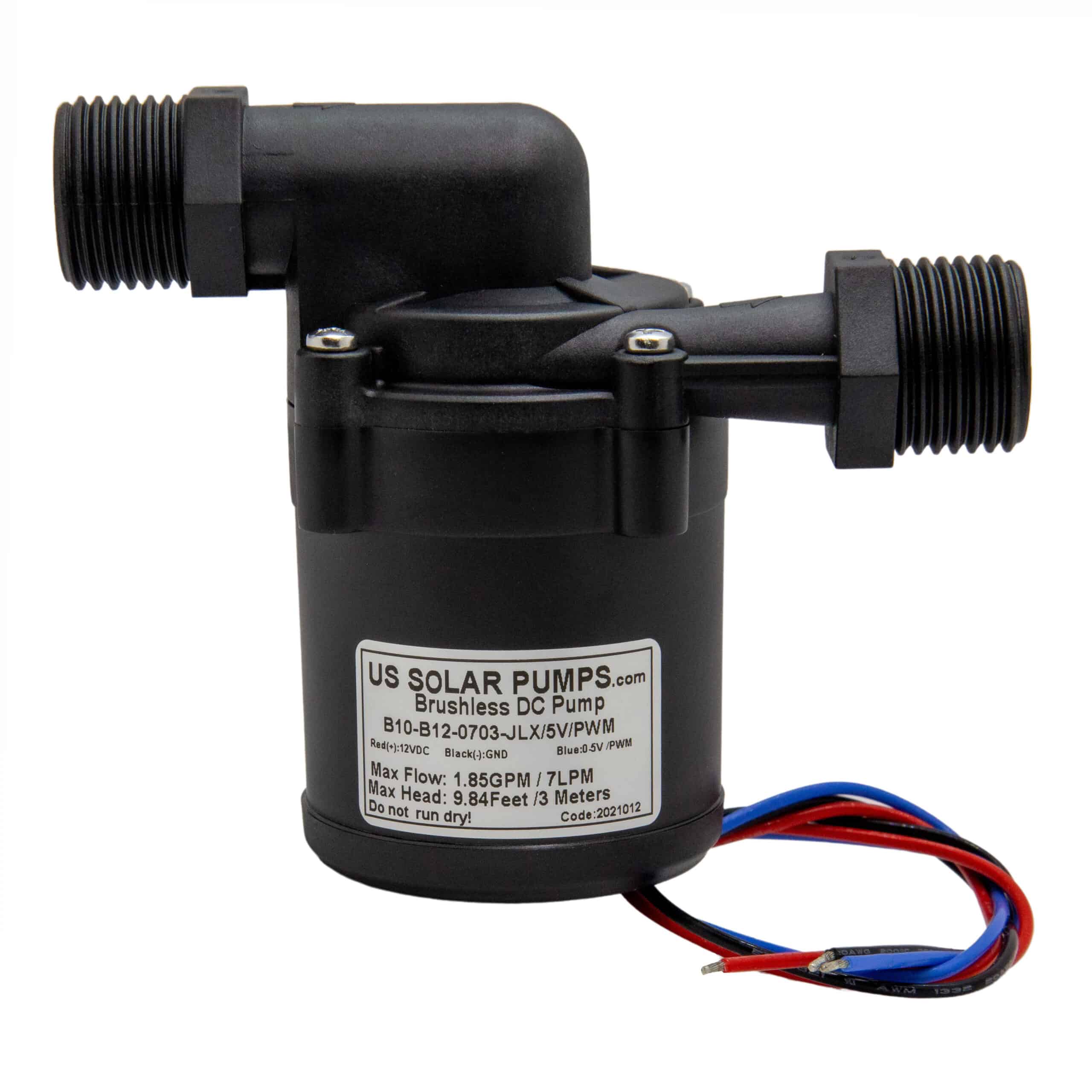

B10B 12V 7L 5V PWM
  • 12 Volts – 16.56 Watts –1.38 Amps
  • Max Flow Rate –1.84 GPM / 7 LPM
  • PWM controller
B10B 12V 9L PWM
  • 12 Volts – 16.56 Watts –1.38 Amps
  • Max Flow Rate – 2.37 GPM / 9 LPM
  • PWM controller

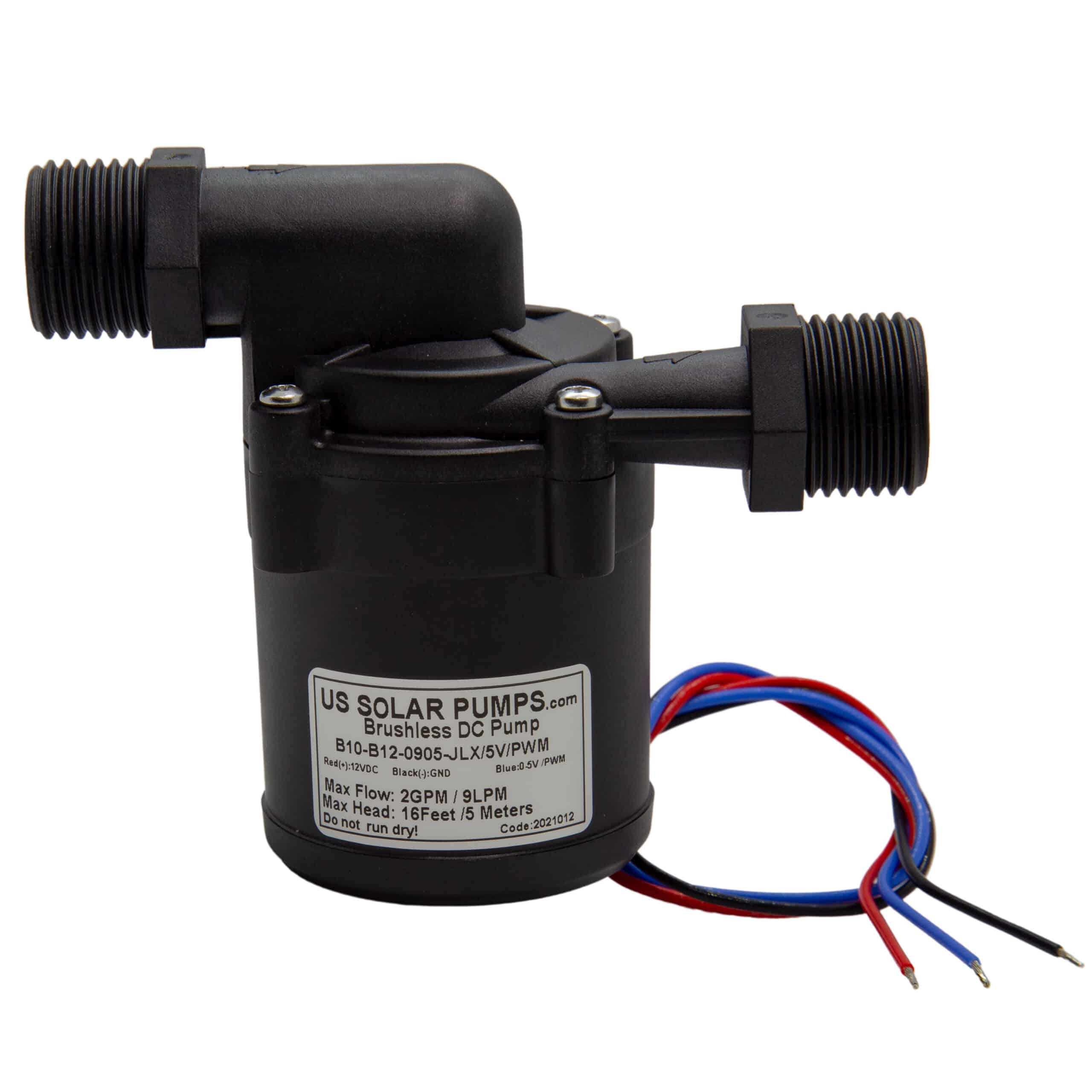

B10B 12V 9L 5V PWM
  • 12 Volts – 16.56 Watts –1.38 Amps
  • Max Flow Rate – 2.37 GPM / 9 LPM
  • PWM controller
B10B 24V 7L 5V PWM
  • 24 Volts –16.8 Watts – 0.7 Amps
  • Max Flow Rate – 1.84 GPM / 7 LPM
  • PWM controller
SKU: B10B PWM Category:

Quantity based pricing table


Download PDF for additional information

Download PDF File

View and download STP file here

Download STP File

B10B 5V PWM Circulating Pump Specifications:

  • Max Temperature – 158 F / 70C
  • Static PSI – 58.0 / 4 Bar
  • Inlet / Outlet – 12.4mm x 10.8mm
  • Food Grade
  • Can be run directly from PV


The B10B 5V PWM Circulating Pump is one of our B series micro centrifugal pumps.  It is powered by a three-phase brushless DC motor. Our B series pumps are designed to be quiet, compact and lightweight.

The B10B 5V PWM Circulating Pump has a variety of features: it has a seal-less design to prevent leakage and a wide range of working voltage which provides the pump with a stable performance.

The B10B is designed for general and commercial use and industrial applications. They are ideal for all circulation pump implementations.

The B10B pumps freshwater and seawater. It can also pump other liquids that are compatible with the pump’s materials and have a similar viscosity to water.


  • ECM brushless DC motor
  • Sustains a continuous 24-hour workload
  • Life expectancy: over 20,000 hours
  • Advanced magnetic drive technology
  • Leak-proof static-seal
  • Ceramic bearing and shaft
  • Designed for high temperature endurance
  • Highly efficient
  • Dynamically balanced impeller
  • Reliable because of the unique design: containing only one moving part. The magnetically driven impeller spins on a single ceramic bearing. This extends the life of the pump beyond existing standards.

Areas of Use for the B10B 5V PWM Circulating Pump:

  • Chiller systems
  • Large fish ponds
  • Vending machines
  • Beverage processing
  • Hot water circulating system
  • Electric cars: radiators, heaters
  • Liquid filling and transfer in food
  • Electronics cooling water circulation
  • Fountain, aquariums and small fish ponds
  • Instant electric water heater, electric shower
  • Circulating systems for homes, RV’s and boats
  • Cleaning equipment
  • Water treatment and purification
