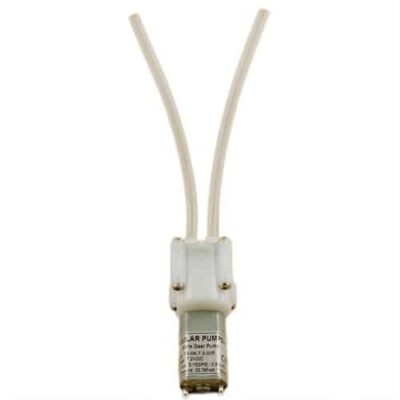

G6 Direct Drive Gear Pump

G6 Direct Drive Gear Pump

$9.70 – $32.80

Available Options:

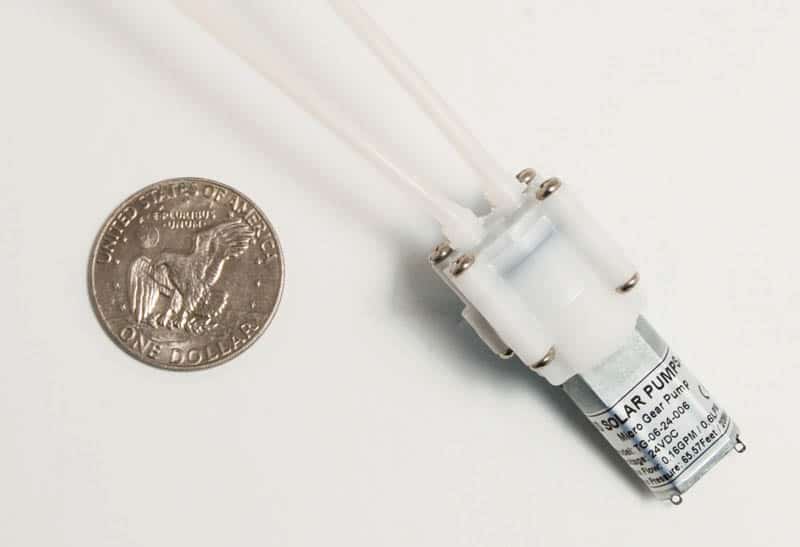

G6 24V 0.60L
  • 24 Volt – 3 Watt – 0.125 Amps
  • Max Flow Rate – 0.16 GPM / 0.6 LPM
  • Head – 66.57 PSI / 20 Bar

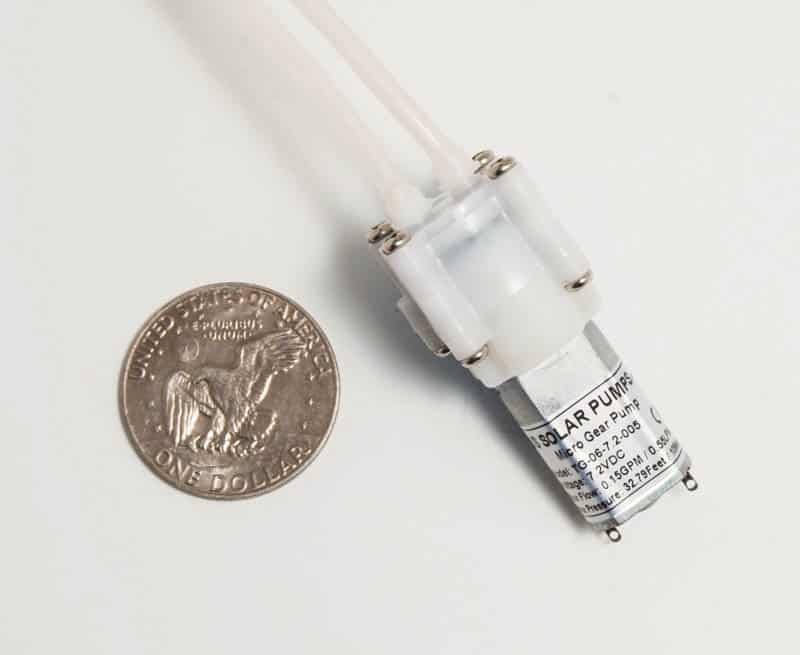

G6 7.2V 0.55L
  • 7.2 Volt – 3 Watt – 0.5 Amps
  • Max Flow Rate – 0.15 GPM / 0.55 LPM
  • Head – 32.79 PSI / 10 Bar
G7 12V 1.6L
  • 12 Volt – 40 Watt – 3.5 Amps
  • Max Flow Rate – .26 GPM / 1.6 LPM
  • Head – 32.79 PSI / 10 Bar
SKU: TG 06 Categories: , , Tags: , , , ,

Quantity based pricing table

Description

~ Download PDF for additional information about this Gear Pump

Download PDF File

Specifications:

The specifications of the G6 Direct Drive Gear Pump are:

  • Max. Temperature of the Gear Pump – 158 F / 70 C
  • Intermittent operation only
  • Pump house in POM
  • Gears made of PPE

Application:

Gear Pumps are used in lab equipment, to spray paint, sanitary ware, ice-making machines, drinking fountains, and other similar machines.

Features of the G6 Direct Drive Gear Pump:

  • Self-Priming
  • Reverse Polarity Protection

Areas of Use for this Gear Pump:

  • Ice-making machines
  • Drinking fountains
  • Sanitary ware
  • Spray paint
  • Water systems
  • Vacuum cleaners

Follow us on Facebook, Twitter, Instagram and YouTube to learn more about our Gear Pumps.

Also, look at our other Gear Pumps: the G2-P Direct Drive Gear Pump, 200 Series Magnetic Drive Brushless Motor and 300 Series Magnetic Drive Motor with Controller.
